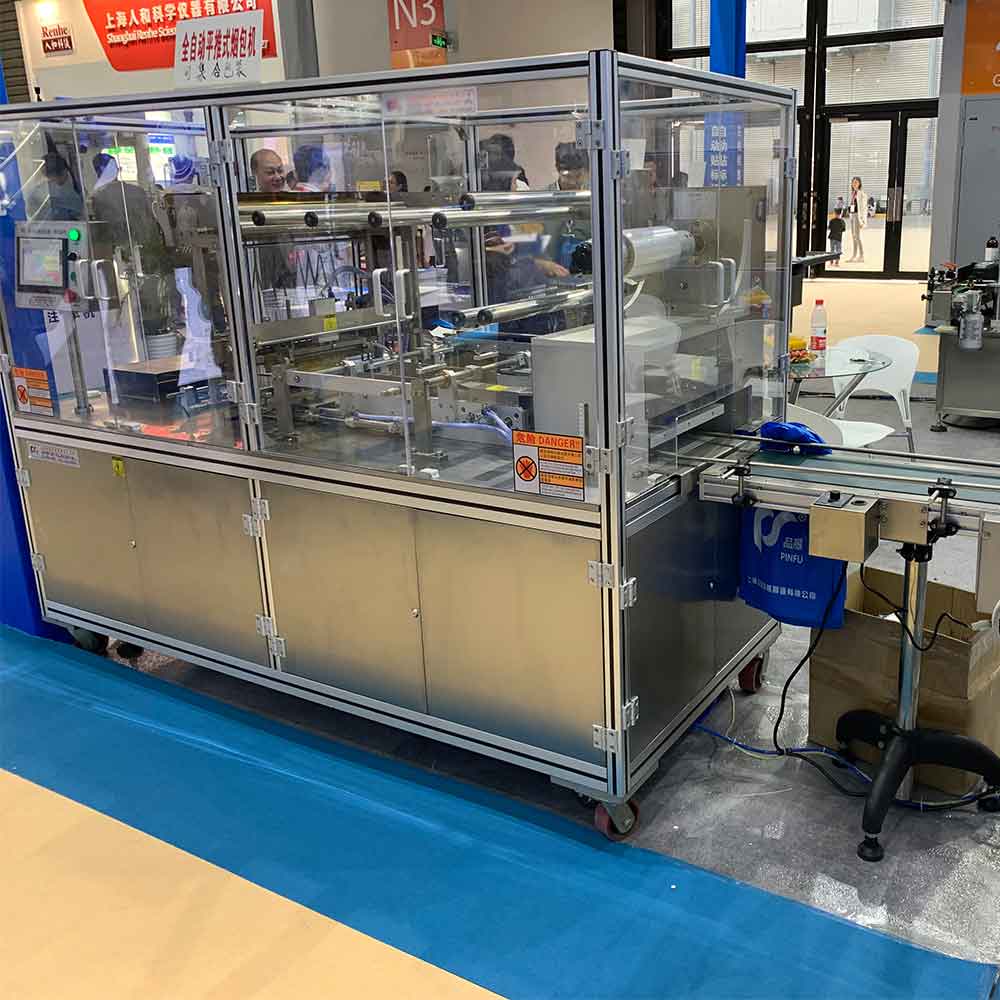

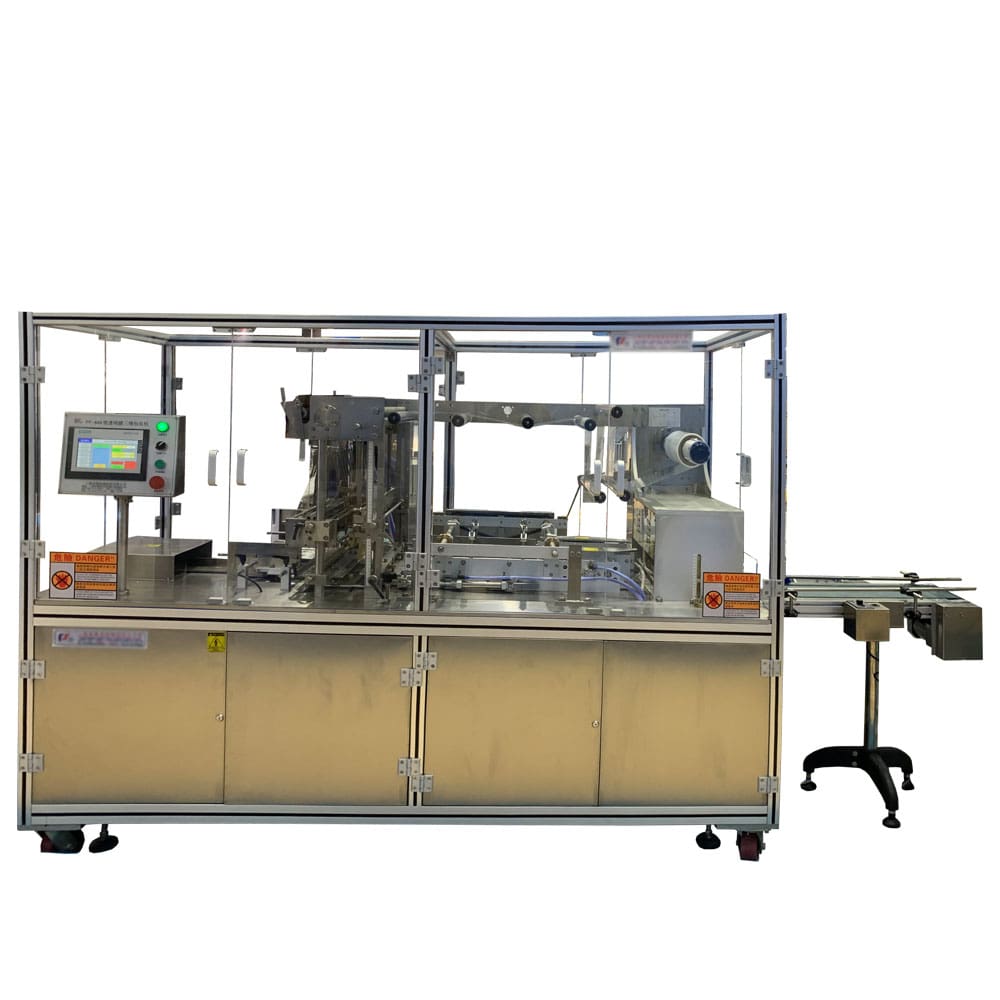

The transparent film three-dimensional packaging machine uses cellophane or BOPP coating for three-dimensional packaging of cardboard boxes and packaging products of different specifications.
Model | CW-680 |
---|---|
Speed | 15-30 pcs/min |
Material | BOPP film and golden tear tape |
Carton Size | (L)80-400mm(W)45-240mm(H)20-120mm |
Air Consumption | 0.5-0.8MPa |
Power | 5.3KW |
Dimension | (L)2180mm(W)1000mm(H)1500mm |
Weight | 880KGS |
This machine uses cellophane or BOPP coating for three-dimensional packaging of cardboard boxes and packaging products of different specifications. Application : This machine is widely used for single or collective automatic packaging of various box-type items in the industries of medicines, health products, food, tea boxes, cosmetics, stationery, audio and video products, etc. Such as wrapping medicine, poker, cigarettes, boxed VCD, tape, boxed cosmetics, boxed tea, boxed napkins, etc.

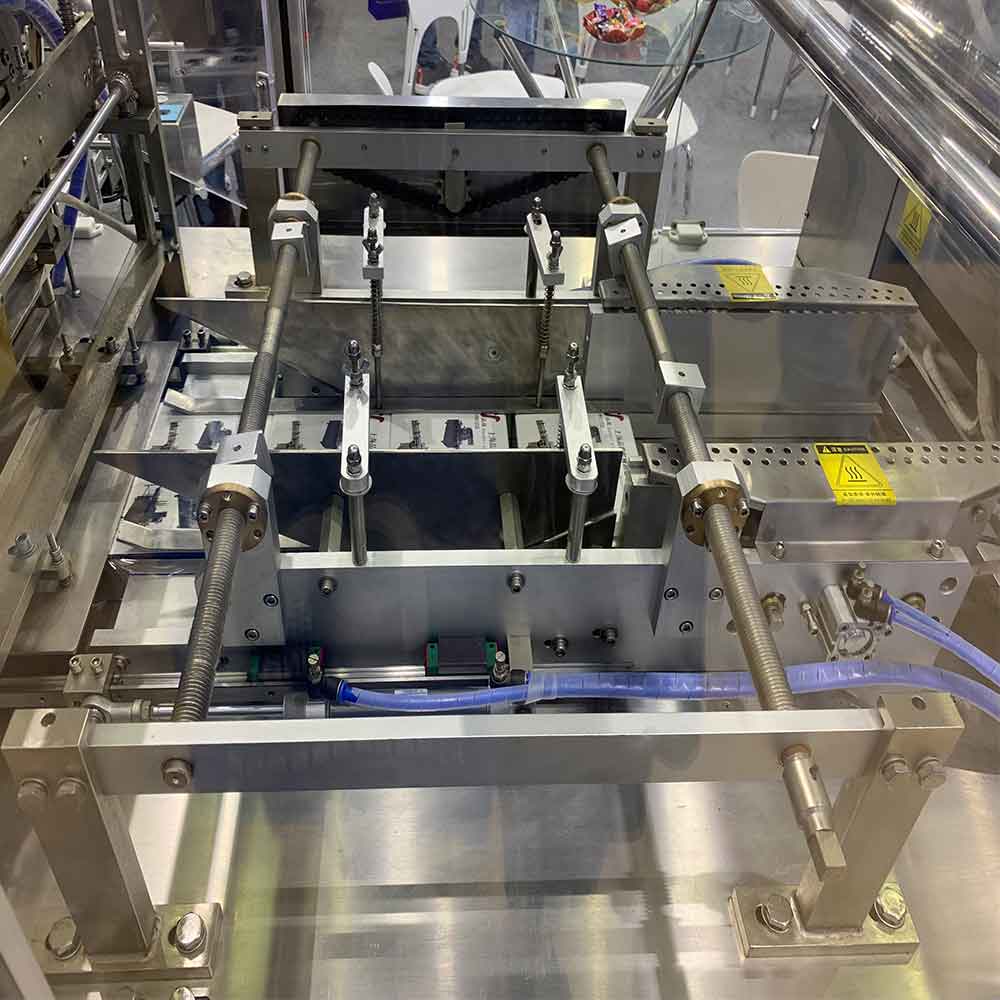

Features: This machine adopts imported PLC man-machine interface control, all its actions are driven by cylinders, and the membrane system is controlled by servo motor. The push box part adopts servo to push the box more accurately. The size of the membrane can be adjusted arbitrarily, and the operation is stable and reliable. , The sealing is firm, smooth and beautiful, and easy to maintain. The body is composed of an imported aluminum alloy frame and a closed plexiglass protective cover. The platform and parts of the machine body are made of stainless steel, which meets hygienic standards and has a beautiful appearance.
